NovaStar

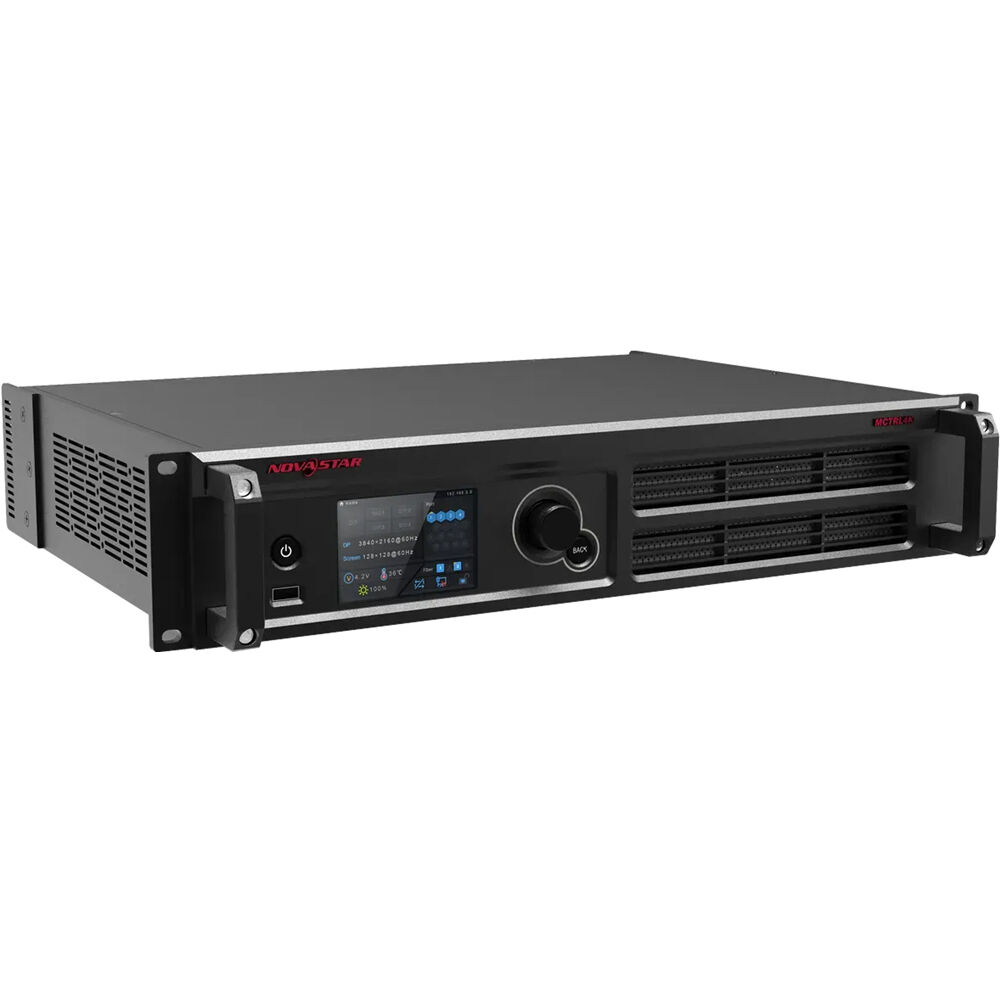

MCTRL4K LED Display Controller
$4,200.00
Qty
1
- Returns
- Warranty
- 30 days from delivery, in original condition and packaging.
- After the return window the manufacturer’s warranty applies. Spencer Clem does not add one of its own.
Overview
4K LED display controller driving up to sixteen Gigabit outputs from one source.
Specifications
Power
Voltage
Power inlet
Physical
Width × height × depth
Rack units
Mounting
Finish
Network
Management
VLAN
Documentation
Visualization
Default zone
Placement
Notes
Source
Not recorded. This section has not been filled in for this product.
Where the figures are uncertain
Sixteen Ethernet outputs are modelled per the published loading capacity; the four DVI inputs are not modelled.
Inputs and outputs
Grouped the way the back panel is grouped. Port labels are the manufacturer’s own, so they match what is silk-screened on the chassis.
HDMI in
| Port | Label | Connector | No. |
|---|---|---|---|
| In | HDMI 2.0 In | HDMI female | 1 |
| In | DisplayPort 1.1 In | DisplayPort female | 2 |
LED outputs
| Port | Label | Connector | No. |
|---|---|---|---|
| Bidirectional | Ethernet Out 1 | RJ45 female | 1 |
| Bidirectional | Ethernet Out 2 | RJ45 female | 2 |
| Bidirectional | Ethernet Out 3 | RJ45 female | 3 |
| Bidirectional | Ethernet Out 4 | RJ45 female | 4 |
| Bidirectional | Ethernet Out 5 | RJ45 female | 5 |
| Bidirectional | Ethernet Out 6 | RJ45 female | 6 |
| Bidirectional | Ethernet Out 7 | RJ45 female | 7 |
| Bidirectional | Ethernet Out 8 | RJ45 female | 8 |
| Bidirectional | Ethernet Out 9 | RJ45 female | 9 |
| Bidirectional | Ethernet Out 10 | RJ45 female | 10 |
| Bidirectional | Ethernet Out 11 | RJ45 female | 11 |
| Bidirectional | Ethernet Out 12 | RJ45 female | 12 |
| Bidirectional | Ethernet Out 13 | RJ45 female | 13 |
| Bidirectional | Ethernet Out 14 | RJ45 female | 14 |
| Bidirectional | Ethernet Out 15 | RJ45 female | 15 |
| Bidirectional | Ethernet Out 16 | RJ45 female | 16 |
Control
| Port | Label | Connector | No. |
|---|---|---|---|
| In | USB (Control) | USB-B female | 1 |
Mains
| Port | Label | Connector | No. |
|---|---|---|---|
| In | AC Mains In | IEC C13/C14 male | 1 |
