L-Acoustics

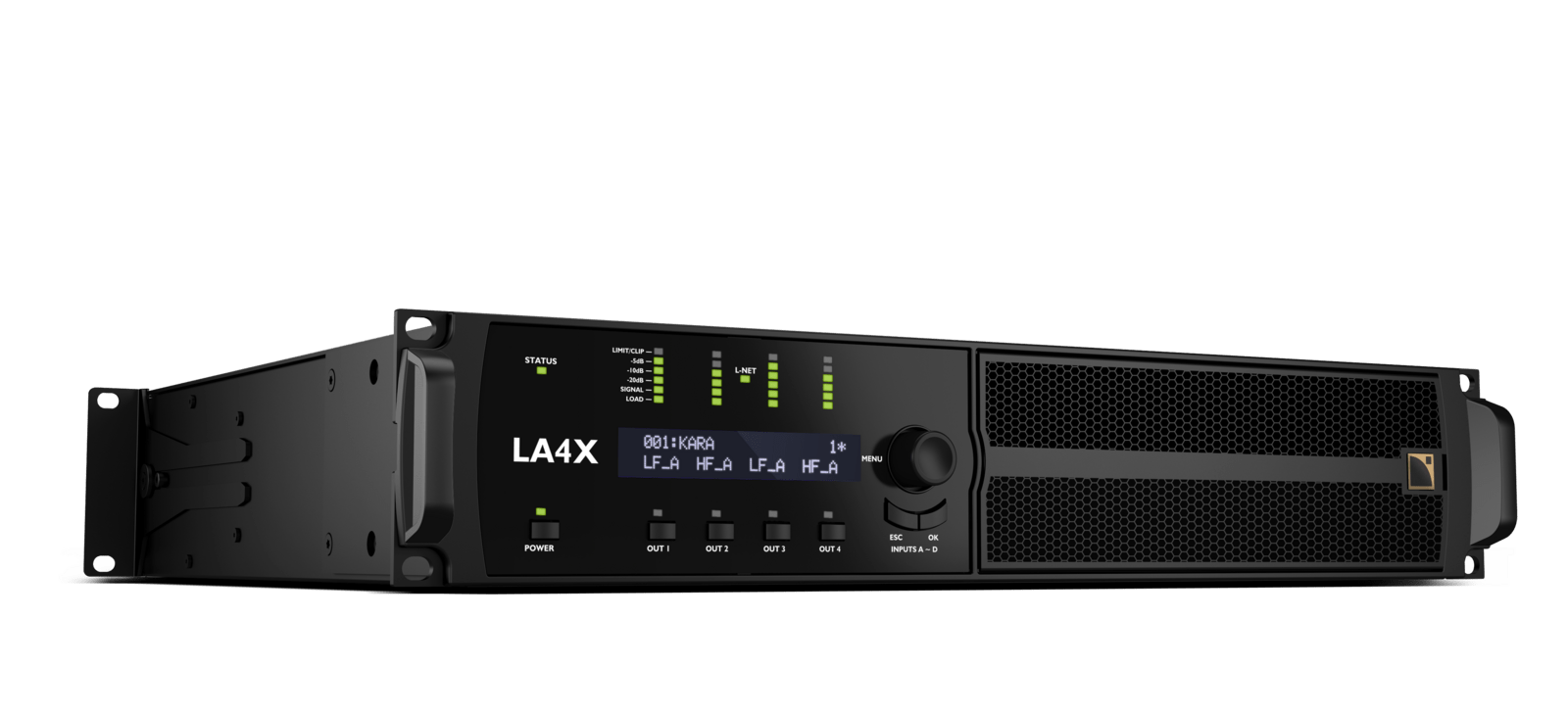

LA4X Amplified Controller
$8,200.00
Qty
1
- Returns
- Warranty
- 30 days from delivery, in original condition and packaging.
- After the return window the manufacturer’s warranty applies. Spencer Clem does not add one of its own.
Overview
Four-channel amplified controller with analog and AES3 inputs and the L-Acoustics preset library.
Specifications
Power
Voltage
Power inlet
Physical
Width × height × depth
Rack units
Mounting
Finish
Network
Management
VLAN
Documentation
Visualization
Default zone
Placement
Notes
Source
Not recorded. This section has not been filled in for this product.
Where the figures are uncertain
Four AES3 channels are modelled as two XLR pairs, and the output panel as four speakON NL4; neither arrangement nor the powerCON variant is verified.
Inputs and outputs
Grouped the way the back panel is grouped. Port labels are the manufacturer’s own, so they match what is silk-screened on the chassis.
Analog in
| Port | Label | Connector | No. |
|---|---|---|---|
| In | Analog In 1 | XLR3 female | 1 |
| In | Analog In 2 | XLR3 female | 2 |
| In | Analog In 3 | XLR3 female | 3 |
| In | Analog In 4 | XLR3 female | 4 |
AES3 in
| Port | Label | Connector | No. |
|---|---|---|---|
| In | AES/EBU In A | XLR3 female | 1 |
| In | AES/EBU In B | XLR3 female | 2 |
Amplifier out
| Port | Label | Connector | No. |
|---|---|---|---|
| Out | Output 1 | speakON NL4 male | 1 |
| Out | Output 2 | speakON NL4 male | 2 |
| Out | Output 3 | speakON NL4 male | 3 |
| Out | Output 4 | speakON NL4 male | 4 |
Network
| Port | Label | Connector | No. |
|---|---|---|---|
| Bidirectional | Network In | etherCON female | 1 |
| Bidirectional | Network Thru | etherCON female | 2 |
Mains
| Port | Label | Connector | No. |
|---|---|---|---|
| In | AC Mains In | powerCON male | 1 |
