Blackmagic Design

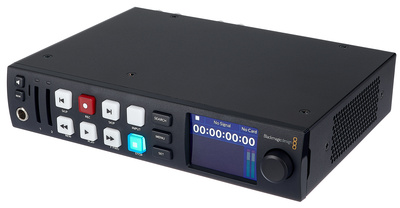

HyperDeck Studio HD Plus Recorder
$695.00
Qty
1
- Returns
- Warranty
- 30 days from delivery, in original condition and packaging.
- After the return window the manufacturer’s warranty applies. Spencer Clem does not add one of its own.
Overview
Broadcast deck recording H.264 and ProRes to SD cards or USB disks.
Specifications
Power
Voltage
Power inlet
Physical
Width × height × depth
Rack units
Mounting
Finish
Network
Management
VLAN
Documentation
Visualization
Default zone
Placement
Notes
Source
Not recorded. This section has not been filled in for this product.
Where the figures are uncertain
Analog audio inputs modelled as two 1/4-inch TRS and the mains inlet as IEC; neither is verified.
Inputs and outputs
Grouped the way the back panel is grouped. Port labels are the manufacturer’s own, so they match what is silk-screened on the chassis.
SDI in
| Port | Label | Connector | No. |
|---|---|---|---|
| In | SDI In | BNC female | 1 |
SDI out
| Port | Label | Connector | No. |
|---|---|---|---|
| Out | SDI Out | BNC female | 1 |
HDMI out
| Port | Label | Connector | No. |
|---|---|---|---|
| Out | HDMI Out | HDMI female | 1 |
Analog audio in
| Port | Label | Connector | No. |
|---|---|---|---|
| In | Audio In L | TRS 1/4" female | 1 |
| In | Audio In R | TRS 1/4" female | 2 |
Ethernet
| Port | Label | Connector | No. |
|---|---|---|---|
| Bidirectional | Ethernet | RJ45 female | 1 |
USB expansion
| Port | Label | Connector | No. |
|---|---|---|---|
| Out | USB-C Expansion | USB-C female | 1 |
Mains
| Port | Label | Connector | No. |
|---|---|---|---|
| In | AC Mains In | IEC C13/C14 male | 1 |
