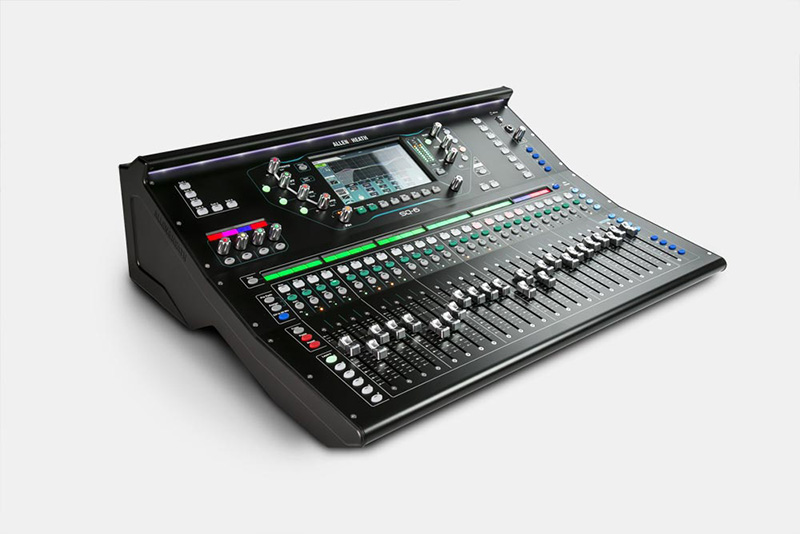

Allen & Heath

SQ-6 Digital Mixer

Model SQ-6

$4,699.00

SKU ALLEN-HEATH-SQ-6

Qty

Returns
Warranty: 30 days from delivery, in original condition and packaging.; After the return window the manufacturer’s warranty applies. Spencer Clem does not add one of its own.

Overview

48-channel 96 kHz console with 24 onboard preamps and 25 motorised faders.

sq · console · 96k

Power

Voltage100-240 V AC

Power inletIEC C14

Physical

MountingDesktop

FinishBlack

Network

ManagementSQ MixPad, TCP/IP

VLANControl on the house VLAN; SLink stays point to point

DocumentationNot recorded

Visualization

Default zonefoh

PlacementFOH desk or a rolling cart

Notes

SourceManufacturer published specifications; the figures called out in the notes are unverified.

Not recorded. This section has not been filled in for this product.

Where the figures are uncertain

Output count taken as 12 XLR; not verified against the current SQ-6 manual. The I/O port card slot is not modelled as a port.

6 groups

Grouped the way the back panel is grouped. Port labels are the manufacturer’s own, so they match what is silk-screened on the chassis.

Local mic/line in

Analog mic · 24 in / 0 out

Port	Label	Connector	No.
In	Mic/Line In 1	XLR3 female	1
In	Mic/Line In 2	XLR3 female	2
In	Mic/Line In 3	XLR3 female	3
In	Mic/Line In 4	XLR3 female	4
In	Mic/Line In 5	XLR3 female	5
In	Mic/Line In 6	XLR3 female	6
In	Mic/Line In 7	XLR3 female	7
In	Mic/Line In 8	XLR3 female	8
In	Mic/Line In 9	XLR3 female	9
In	Mic/Line In 10	XLR3 female	10
In	Mic/Line In 11	XLR3 female	11
In	Mic/Line In 12	XLR3 female	12
In	Mic/Line In 13	XLR3 female	13
In	Mic/Line In 14	XLR3 female	14
In	Mic/Line In 15	XLR3 female	15
In	Mic/Line In 16	XLR3 female	16
In	Mic/Line In 17	XLR3 female	17
In	Mic/Line In 18	XLR3 female	18
In	Mic/Line In 19	XLR3 female	19
In	Mic/Line In 20	XLR3 female	20
In	Mic/Line In 21	XLR3 female	21
In	Mic/Line In 22	XLR3 female	22
In	Mic/Line In 23	XLR3 female	23
In	Mic/Line In 24	XLR3 female	24

Local line out

Analog line · 0 in / 12 out

Port	Label	Connector	No.
Out	Out 1	XLR3 male	1
Out	Out 2	XLR3 male	2
Out	Out 3	XLR3 male	3
Out	Out 4	XLR3 male	4
Out	Out 5	XLR3 male	5
Out	Out 6	XLR3 male	6
Out	Out 7	XLR3 male	7
Out	Out 8	XLR3 male	8
Out	Out 9	XLR3 male	9
Out	Out 10	XLR3 male	10
Out	Out 11	XLR3 male	11
Out	Out 12	XLR3 male	12
